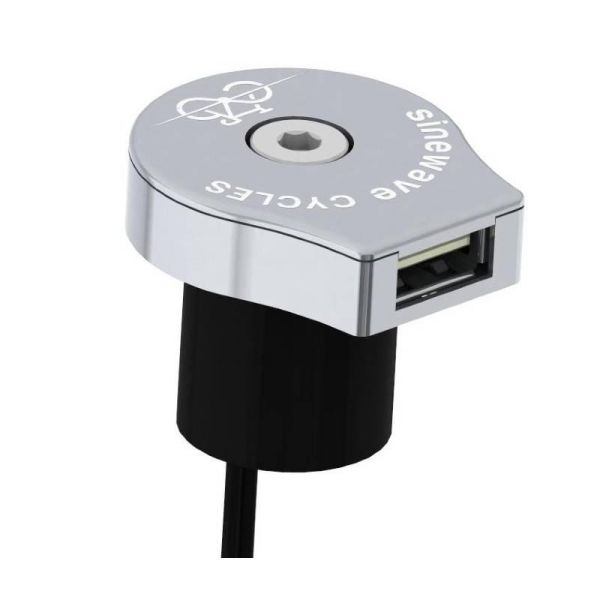

Sinewave Reactor, black
MPN: REACTOR-BLACK
FITS: 1-1/8" Aluminum or Steel steerer tubes
STEERER TUBE MINIMUM I.D.: 21.5mm
CONNECTION: USB A port
POWERED BY: 6 Volt, 3 Watt Dynamo Hub or up to 52 volt DC power source
E-BIKE COMPATIBLE: Yes, can be connected to DC power up to 52 volts
WEIGHT: 43 grams (35g Reactor; 8g wire)
INCLUDES: Reactor w/wire, Topcap Bolt & Dowel (for measurement)
Installation tips: Your star nut needs to be driven downwards until the top of the star nut is 48 to 52mm below the top surface of your stem (or the top surface of any headset spacers above the stem). The top of the steerer tube needs to be at least 2mm below the top face of the stem (or spacer) to accommodate the centering nub and ensure the main unit pulls down on the stem/spacer/headset stack instead of bottoming out the spacer nub against the end of the steerer tube and not properly preloading the headset.
| Brand | Sinewave Cycles |
|---|---|
| Use Parent Product URL | No |
