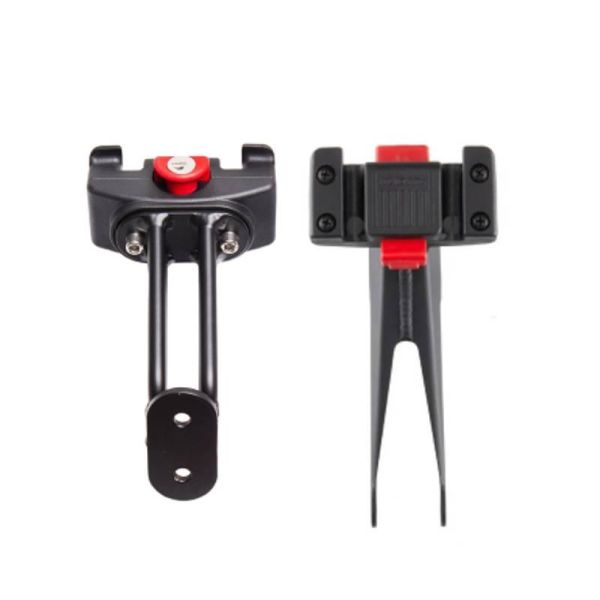

Tern Luggage Truss Front Frame Mount

The Luggage Truss lets you mount cargo on the bike frame for improved steering stability and a wobble-free ride. KLICKfix-compatible, with a quick-release to attach or detach bags, baskets and racks. Featuring an integrated lock for security and a low profile design that doesn’t affect bike folded size.

Two versions:

Luggage Truss (G2)

Compatiblity includes Vektron, Verge, Link, Eclipse, Node & Swoop.
Will not work on Verge X18, Link A7, or Link B7.
Pop off the head-badge to find two screw holes.

Luggage Truss CMT

Compatibilty includes all Tern bikes with the Combo Mount: Short Haul, Quick Haul, HSD, GSD, NBD and BYB.

Version

As low as $69.97

Qty

- +

Availability:In stock

SKU 6593

Details

Tern CMT Combo Mount Luggage Truss
MPN: 82520
UPC: 812741025606

DIMENSIONS: 165 × 100 × 85 mm (6.5 × 3.9 × 3.3 in)
LOAD CAPACITY: 7 kg (15.4 lb)
WEIGHT: 0.22 kg (0.5 lb)

Tern Luggage Truss, for bikes with the mount hidden beneath the head badge
MPN: 85123
UPC: 812741025354

DIMENSIONS: 133 × 85 × 65 mm (5.2 × 3.3 × 2.6 in)
LOAD CAPACITY: 7 kg (15.4 lb)
MATERIAL: Aluminum
WEIGHT: 0.195 kg (0.4 lb)
