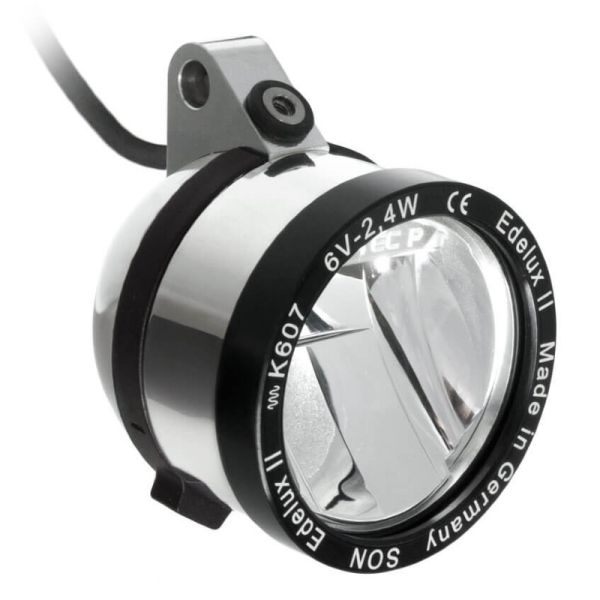

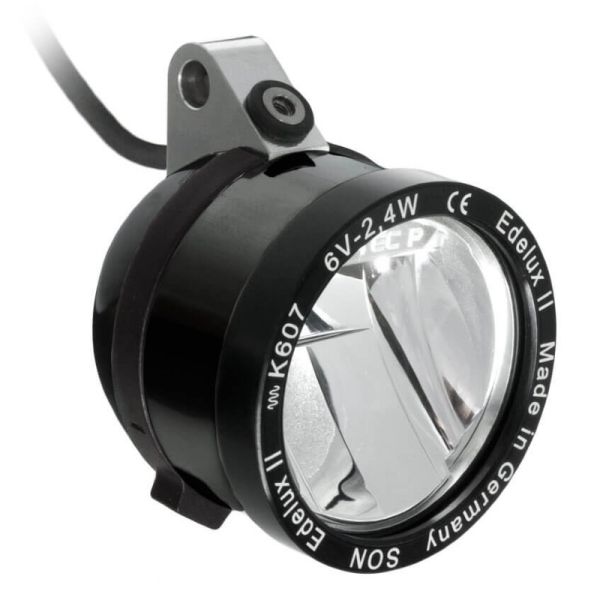

Schmidt Edelux II Dynamo Headlight - Upside Down

Schmidt’s Edelux II Upside Down provides an incredible amount of light at both high and low to medium speeds. You’ll love how evenly it illuminates the road ahead even more than its good looks!
Best of all, the Edelux II Upside Down’s high-quality construction with its sealed aluminum body and glass lens means it will offer a clear, wide beam of light for years to come.
A favorite of winter commuters, gravel riders, and aesthetes alike.

If you are using a Busch and Muller rear light, you'll need to buy a rear light wire

We use SON's Coaxial Connector w/Hub Mount for making the connection between the light wire and the hub. Elegant and super durable.

Relevant Dynamo Blog Posts: Dynamo Lighting or Charging Devices w/Dynamo Power

SON Edelux II INSTRUCTIONS: HERE

Looking for a standard Edelux II?

Add A Mounting Bracket?

Hub Connector Type

Wire Length: hub connector to headlight

Custom Wire Length: hub connector to headlight (inches, max=54)

Install Junction Box In Power Wire?

Wire Length: hub connector to start of junction box (inches, max=31)

As low as $321.97

Qty

- +

Availability:In stock

SKU 5968

Details

SON Edelux II Upside Down Dynamo Light

OUTPUT: 3 Watt-LED / 90 lux at 15kph
WEIGHT: 85g
CONSTRUCTION: Aluminum casing, glass lens
WIRING: 60 cm coaxial cable (hard wired into light)
MODES: On/Off/Auto
INCLUDES: Light, 60mm Wireform Bracket, 2x4.8mm female spades (SON hub connection), 2.8 mm Blade Connector, and 6 mm eyelet ground connector for rear light connection

More Information
