SON Ladelux Headlight [w/o switch or charge cable]

Name: SON Ladelux Headlight [w/o switch or charge cable]
Brand: Schmidt
Price: 559.97 USD
Availability: InStock

Schmidt’s Ladelux headlight brings back a high/low beam WITH charging capabilities to their lineup!

This powerful headlight delivers up to 14 watts from the hub dynamo which combines modern lighting technology with innovative energy supply for device charging. The Ladelux has a low beam of 150 lux and an extra high beam of 200 lux for excellent visibility in all riding conditions. Thanks to the built-in buffer battery (1200 mAh), the high beam is always available – no matter the speed.

The fully integrated charging system allows easy charging of external devices via a sturdy, weatherproof magnetic port with a status indicator on the handlebar switch. With the optional SON Charging Cable (USB-C or Apple), devices can be charged at 5W. The headlight remains nearly as lightweight as standard models, ensuring maximum efficiency with minimal weight gain.

Mount, Remote Switch & Charging Cable sold separately

Relevant Dynamo Blog Posts: Dynamo Lighting or Charging Devices w/Dynamo Power

INSTRUCTION MANUAL: HERE

Mounting Bracket [not included]

Power Wire Modifications

Power Wire Length

Custom Power Wire Length (inches)

Remote Switch

Charging Cable

$559.97

Qty

- +

Availability:In stock

SKU SMT-0712

Details

Schmidt Ladelux Headlight (without Remote Switch or Charge Cable)
MPN: 65020

OUTPUT: 3 Watt-LED, lowbeam-150 lux/highbeam-200 Lux
WEIGHT: 140g
CONSTRUCTION: Aluminum casing, glass lens

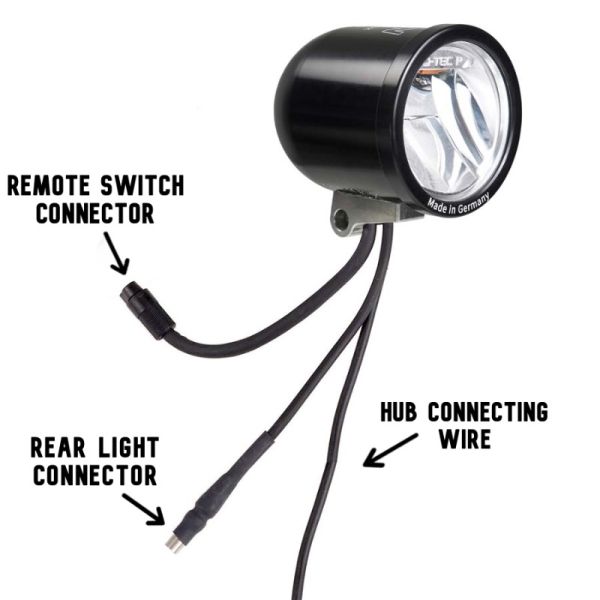

WIRING: 120 cm coaxial cable (hard wired into light) for hub connection (bare wire on hub connecting end), 4" stub wire with female coax connector for rear light & 4" stub wire with Remote Switch connector.
MODES: On/Off & high/low (light has high & low beam option)
INCLUDES: pair of 4.8mm female connectors (hub) + male Coaxial connector (rear light)
INSTRUCTION MANUAL: HERE
NOT INCLUDED: Mount, Remote Switch & Charging Cable

REAR LIGHT: All Schmidt and Busch & Muller dynamo taillights work with the Ladelux light. The rear light wire connects to the Ladelux with a male coaxial connector (included). We can make you a custom rear light wire.
HUB CONNECTION: We prefer using the Schmidt Coaxial Hub Connector for connecting the front light wire to SON28 hubs. This is in options when purchasing the light.

This light will not turn on without a Remote Switch
